Reed 1H Tonearm

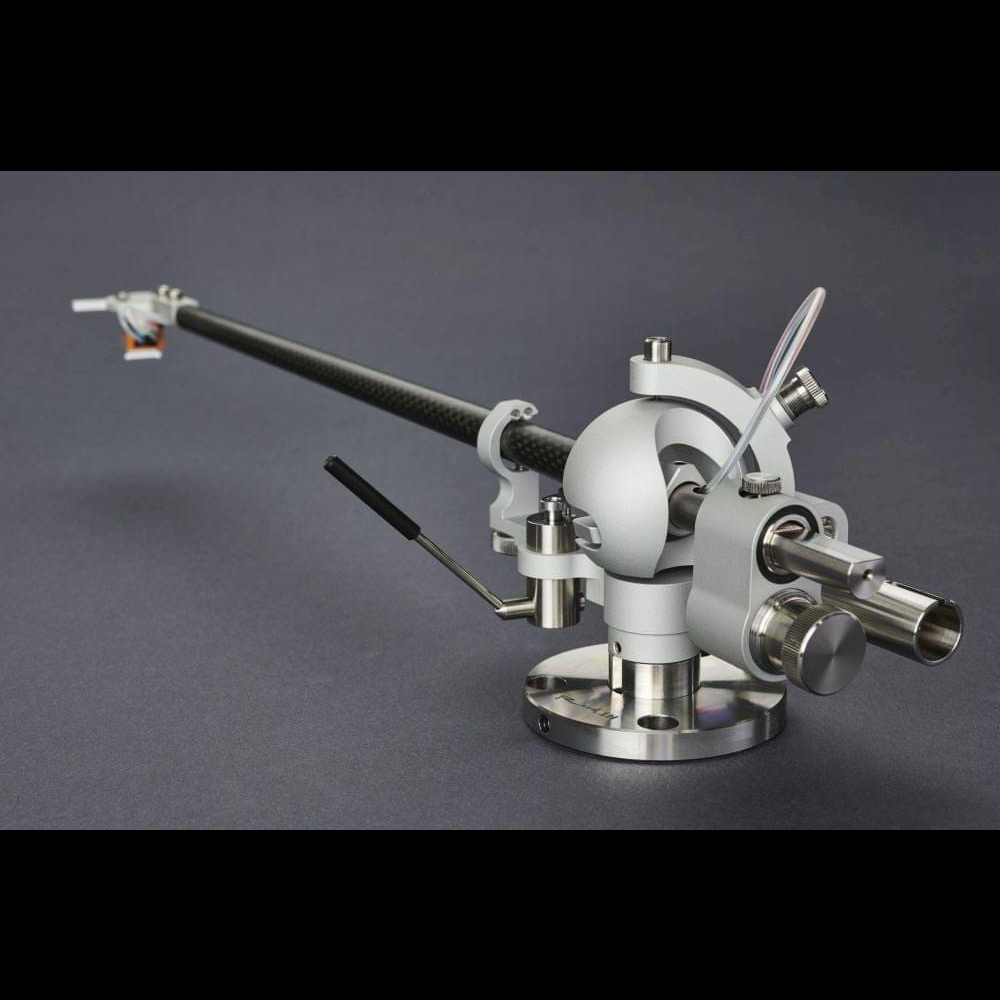

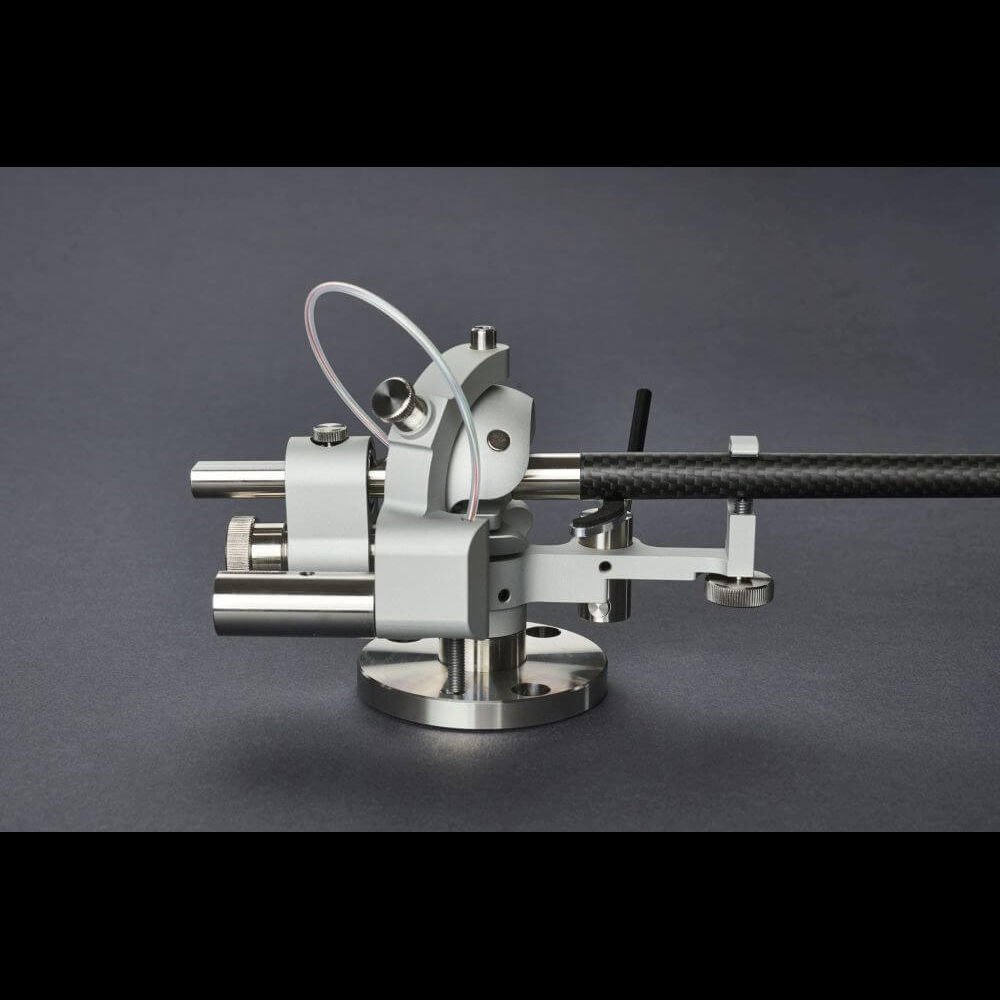

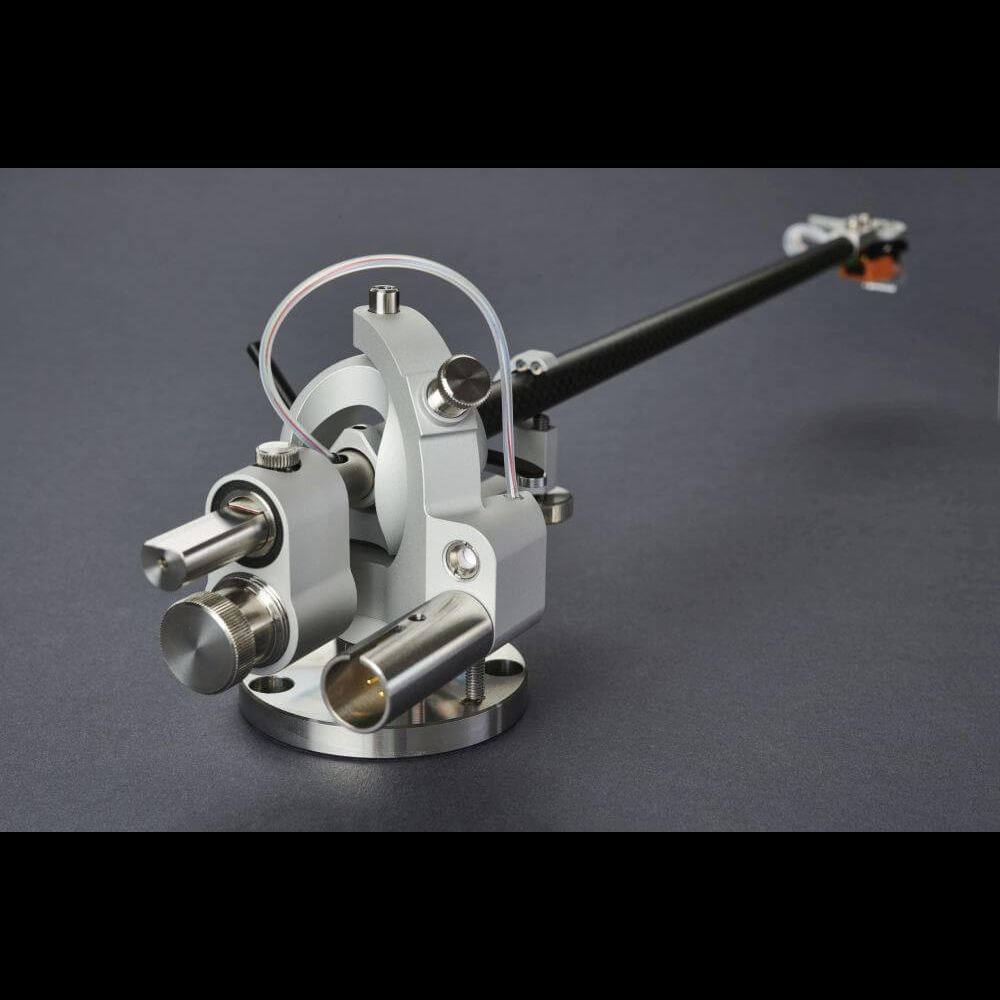

Reed 1H Tonearm REED 1H Tonearm Specifications Reed 1H has a cardanic bearing system: vertical axis has thrust rotation bearings and horizontal axis is based on thrust pivot bearings (same concept as in Reed 3P). Such bearing construction eliminates wobbling of a bearing, which has a great impact on the quality of the sound. Among other features, Reed 1H tonearm has azimuth adjustment, replaceable headshell and VTA adjustment. Tonearm height adjustment range is from 28mm to 48 mm. It is also easily tuned and can be mounted on most turntables out of the box or using an adapter. Tonearm signal output is either 5 pin-DIN connector or Finewire 37 cables. Antiskating: magnetic, similar to the one used in Reed 3P. SPECIFICATIONS Effective length 9.5″ 10.5″ 12″ Mounting distance, mm 223 251.6 295.6 Pivot to spindle distance, mm 223 251.6 295.6 Overhang, mm 17 15.4 13.4 Offset angle, deg 22.9 20.7 17.6 Please find reviews below: https://www.reed.lt/reviews/ How to find us Contact Us to book a demo in our Elland Listening room. Burley Street, Elland, HX5 0AQ Phone: 01422 250590 Email: [email protected] Ask a question Your Name (required) Your Email (required) Your Message
