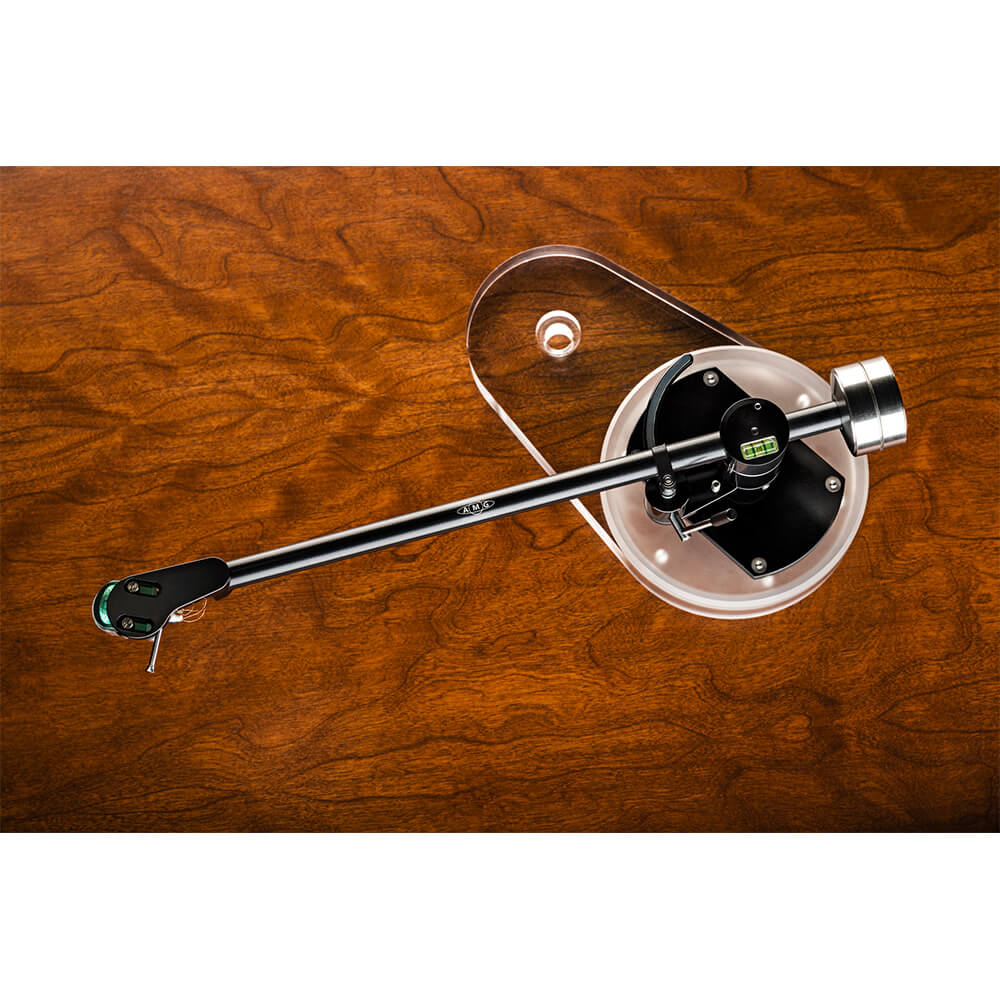

AMG 9W2 TONEARM The aircraft grade aluminum armwand is anodized for resonance control. Identical to the 12J2, the new 9” tonearm’s internal wiring is multiple stranded high-purity copper, and features magnetic anti-skate and precision locking VTA adjustment. The 9W2, with a pivot to spindle distance of 211mm, is designed for the Linn LP-12, as the second arm on an AMG Viella 12 using the TWIN armboard with OVAL SME mount adapter, or other turntables that accommodate this length. Bearing: Patented Dual-pivot bearing Vertical bearing, similar to a technique used in the rotor heads of helicopters Uses two .5mm thick “spring steel wires,” allowing fine azimuth adjustment while eliminating bearing play Horizontal axle is a hardened tool steel, precision ground to a backlash-free git with a needle roller bearing It is extremely precise, maintenance free, and never requires adjustment Armwand: Aircraft quality | Anodized aluminum tube for resonance control | 9 gram effective mass Counterweight: 2-piece with Teflon decoupled sleeve Copper Internal Wiring: Multiple gauges of high quality copper Magnetic Anti-skating: Decoupled via ring magnet and 2-bar magnets | Magnetic fields isolated in our patented bearing housing VTA: Precision locking system allowing easy adjustment during play Specifications: Effective Length: 229mm Pivot to Spindle Length: 211 mm Overhang: 18.1mm Offset Angle: 24.07 degrees Effective Mass: 9.1g Null Points: Inner: 66 mm, Outer: 120.9 mm How to find us Contact Us to book a demo in our Elland Listening room. Burley Street, Elland, HX5 0AQ Phone: 01422 250590 Email:
